BOMAG BVP 18/45

 4047 lb. cf, Honda GX 160,  17.7" PLATE, 200 LB WEIGHT

Honda engine with oil alert

Vibration isolated engine

Removable, foldable, vibration isolated steering handle

Wear resistant base plate with reinforced sides

Self-cleaning base plate

Engine protection frame

Balanced lifting point

Carrying handles

Bolt on exciter housing

Centrifugal clutch

Fully enclosed V-belt

*Water tank, shown, is an option for asphalt compaction

 Hours of efficient work
The efficient, patented low-vibration handle lowers the vibration levels below 2 m/s2,
allowing you to work for hours without becoming fatigued or exceeding any regulatory threshold limit values.

Easy handling, excellent results
The watering system, that prevents the bottom plate from sticking to the hot asphalt,
uses only a minimum of water thanks to the easily adjustable water flow.

More work with less water
The large corrosion-free water tank and smart water distribution system enable you to
work longer with less stops for re-filling.  Easy to transport Equipped with transport wheels for effortless transportation.
LF75LAT SPECS


• Honda GX160
• Power output
• 4.8 hp
• Speed forward, max (ft/min) 88.6 ft/min
• 3,282 lbs. centrifugal force
• Weight =  203 lbs
• Plate width 17" #967854901   or   20" #967854902

________________________________
LF100LAT SPECS


• Honda GX160
• Power output
• 4.8 hp
• Speed forward, max (ft/min) 88.6 ft/min
• 3,754 lbs. centrifugal force
• Weight =  236 lbs
• Plate width = 20"


lightweight, fast-operating forward plate compactor, ideal for compacting thin to medium layers of granular soils. A unique plate shape and optimized speed enable fast and easy compaction with high production rates. The exclusive, patented low-vibration handle protects you from unhealthy vibration levels and the compact design with foldable handle make transportation and storage easy.

Motor/engine model 967 85 47-01

Honda GX100

Power output

2.8 hp

Speed forward, max (ft/min)

78.7 ft/min

Weight

116 lbs

3080 lb. cf, Honda GX 160, 17.7 in. plate

Recognized as the industry standard for compacting granular soils and asphalt.
Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability. Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.

Anti-vibration handle dramatically reduces operator fatigue and increases productivity. Solid, high-strength steel base plate for durability.

Tubular steel roll bar protects engine components and provides central lifting point.

Sealed belt cover keeps dirt and rocks out extending belt life.

Open base plate design makes for easier removal of dirt and rock build-up.

Cog-tooth belt drive enables longer life compared to conventional V-belts.

Front mounted exciter assembly allows for easy service access.

Optional, tool-free removable water tank to facilitate refilling of 11.5 quart reservoir.

Unit Specifications Centrifugal Force  3080 lbf  13.7 kN

Exciter Speed  5600 VPM

Plate Size  17.7 x 22.4 in

450 x 570 mm

Max Forward Speed

Per Min.  72 ft  22 m

Fuel Consumption

Per Hour  0.31 gal  1.17 L

Dimensions & Weights Overall Length  36 in  914 mm

Overall Width  17.7 in  450 mm

Overall Height  39.5 in  1003 mm

Shipping Dimensions  33.5 x 18.5 x 27 in

851 x 470 x 686 mm

Operating Weight  175 lb  79 kg

Shipping Weight  200 lb  91 kg

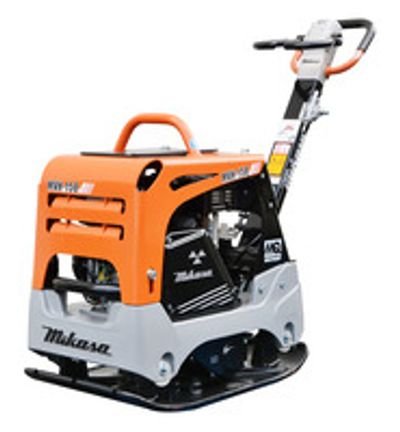

Reliable Honda GX200 engine.

Fold-out front cover for easy access to all maintenance points.

Hour/Tachometer to measure machine hour usage and engine RPM.

Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.

Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.

Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.

Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.

Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.

Low profile base plate lowers the center of gravity dramatically improving travel speed.

Optional- tool-free wheel kit, model WHL158 (this model fits the MVH128 & MVH158) $325 when shipped with the plate

Unit Specifications Centrifugal Force  6070 lbf  27 kN

Exciter Speed  5400 VPM

Plate Size  16.9 x 27.6 in

430 x 700 mm

Max Forward Speed

Per Min.  88 ft  27 m

GX-200

Dimensions & Weights Overall Length  44.8 in  1130 mm

Overall Width  16.9 in  430 mm

Overall Height  36.5 in  920 mm

Operating Weight  326 lb  148 kg
