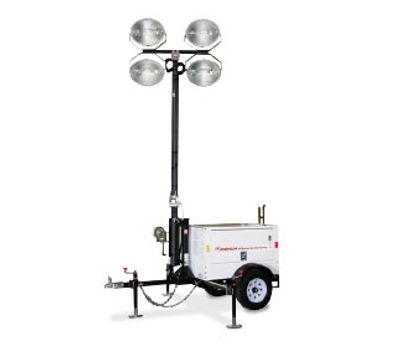

Magnum MLT 3060 Light Tower

The Magnum MLT 3060 Light Tower is our most popular model; just the right amount of power with the right amount of illumination. The 4 - 1000 watt light assemblies' offers complete flexibility with 360 degree rotation, steadfast in winds up to 65+ mph, sturdy outrigger stability along with five to seven acres of light on the site.

Call our sales team today and see how this light tower package can be in your yard tomorrow.

Features

Tough

· Full tubular steel frame trailer

· 30 foot all-steel mast

· 4 - 1,000 watt metal halide lights

· 4 point outrigger stance withstands 65+ mph winds

Reliable

· 4-stroke diesel engine

· Marathon generator

· Low oil/high temperature automatic shutdowns

· Protective start limit breaker

· Individual light breaker switches & ballast boxes

· 2 year - 2,000 hour warranty

Easy to Use

· Adjustable 360 degree mast rotation

· 120V and 240V convenience receptacles

· Lockable cabinet

· DOT running light package on trailer

· Fork guides on the mast and under the trailer

Specifications:

Engine

Make/Brand Mitsubishi

Model L3E-W461ML

Aspiration Natural

Type  Diesel, liquid cooled, 4-stroke

Power - Prime hp (kW) 11.0 (8.2)

Power - Standby hp (kW) 12.2 (9.1)

Operating Speed rpm 1800

Displacement cubic in (L) 57.97 (0.95)

Cylinders 3

Fuel Consumption - Prime gph (Lph) 0.52 (1.97)

Generator

Make/Brand Marathon Electric

Type Brushless

Insulation F

Generator Set (Engine/Gen)

Output - Standby kW (kVA) 6.0 (6.0)

Output Voltage V120/240

Output Amperes  120V (240V)50 (25)

Frequency Hz  60

Power Factor 1.0 (1 Phase)

Lighting

Lighting Type Metal halide

Ballast Type Coil & core

Lumens 440,000

Coverage acres (sq. meters) 5 - 7 (20,234 - 28,328)

Capacities

Fuel Tank gal (L) 30 (114)

Coolant (incl. engine) qt (L) 4.5 (4.3)

Oil (incl. filter) qt (L) 3.8 (3.6)

Maximum Run Time hrs  58

Size and Weight

Maximum height of tower ft (m) 30 (9.14)

Length w/ mast stowed in (m)  170 (4.32)

Width in (m) 49 (1.25)

Width w/ outriggers extended in (m) 98 (2.49)

Height w/ mast stowed in (m) 68 (1.73)

Dry Weight lbs (kg) 1640 (744)

Operating Weight lbs (kg) 1853 (841)

AC Distribution

Circuit Breaker Size 30

Voltage Selection N/A

Voltage Regulation Capacitor +/-6%

AC Voltage - 1 Phase 120, 240

Battery Voltage (qty per unit) 12V (1)

Battery Rating 440 CCA

120V-20 amp GFCI Duplex – qty 1

240V-30 amp Twist Lock – qty 1

240V-50 amp Twist Lock – qty N/A

Trailer

Number of Axles 1

Capacity - Axle Rating lbs (kg) 2200 (998)

Tire Size in 13

Brakes N/A

Hitch 2" Ball

Maximum Tire Pressure psi 50

Options

Powertrain (Engine/Gen)

• 60/40 Coolant

• Engine Heater (Lower Radiator Hose)

• Alternative Engine - Kubota

• Oil Drain Valve Kit

Controls

• Battery, 720 CCA Gel Cell

• Battery, 720 CCA Wet Cell

• Battery, 685 CCA Gel Cell

• No Battery

• Battery Disconnect, Lockable

• Autolight Controller

• Battery Charger, 2 Amp

Cabinet/Fuel Tank

• Level Indicator

• Interior Cabinet Light

• Cap, Fuel Tank - w/ lanyard

• Spare Tire & Carrier

Trailer

• Jack, Tube & Sleeve

• 2 5/16" Ball

• Combo Hitch - 2.5" Ring/2" Ball

• 3" Ring

• 2.5" Ring

• Air Freight/Sea Container Racking

• Manual Parking Brake

• Electric Brakes

Mast/Winch

• High Pressure Sodium Lights

• Quick Disconnect Lights

• Drape Cord

• Galvanized Mast

• Electric Winch

• Electric Winch, Battery Disconnect

The MMG 35 diesel generator provides reliable 3-phase power where and when you need it, in a highly mobile package.

Features

Tough

· Aluminum, lockable enclosure

· Steel skid frame and trailer

· Durable industrial powder coat finish

· Stainless steel exterior hardware

Reliable

· Advanced microprocessor

· Voltage regulation within +/- 1%

· Minimum 24 hour full load run time

· Air filter condition indicator

· 2 year - 2,000 hour warranty

Easy to Use

· Voltage selector switch

· Lugs and lug box safety switch

· Multiple convenience outlets

· External emergency stop switch

· External, lockable fuel cap

· Automatic remote start

· Detachable generator-set and trailer

· Fuel tank integrated into generator-set

Specifications:

Output

3 Phase - Standby kW (kVA) 29 (36)

Amps 480V (208V) 43 (100)

3 Phase - Prime kW (kVA) 26 (33)

Amps 480V (208V) 40 (92)

1 Phase - Standby kW (kVA) 26 (26)

Amps 240V 108

1 Phase - Prime kW (kVA) 25 (25)

Amps 240V 104

AC Voltage 1-phase 120, 139, 208, 220, 240, 277

AC Voltage 3-phase 208, 220, 440, 480

Frequency Hz 60

Power Factor 1.0 (1 Phase) / .8 (3 Phase)

Generator - Brand / Type / Insulation Marathon / Brushless / H

Sound (dB(A) 23 ft @ prime) 68

Size and Weight

Skid Mounted - L x W x H in (m) 83 x 35 x 53 (2.11 x 0.89 x 1.32)

Dry Weight lbs (kg) 2020 (916)

Operating Weight lbs (kg) 2475 (1123)

Trailer Mounted - L x W x H in (m) 132 x 57 x 67 (3.35 x 1.45 x 1.70)

Dry Weight lbs (kg) 2540 (1152)

Operating Weight lbs (kg) 2990 (1356)

Engine

Type Tier II

Brand John Deere

Aspiration Turbo

Power - Prime @ 1800 rpm hp (kWm) 43 (32)

Displacement cubic in (L) 149 (2.4)

Cylinders 4

Speed rpm 1800

Fuel Consumption - Prime gph (Lph) 2.6 (9.8)

Capacities

Fuel Tank gal (L) 72 (273)

Approximate Run Time hrs 25

Coolant qt (L) 16.0 (15.1)

Oil qt (L) 8.5 (8.0)

AC Distribution

Battery - 12V

1 - 12V / 720 CCA Wet Cell

Main Circuit Breaker Size A 125

Voltage Selection 3 Position Switch (lockable)

Voltage Regulation +/-1%

120V - 20A GFI Duplex Outlets – qty  2

240V - 30A Twist Lock Outlets – qty  N/A

240V - 50A Twist Lock Outlets – qty  2

Trailer

Number of Axles 1

Capacity - Axle Rating lbs (kg) 3500 (1588)

Tire Size in 15

Brakes None

Hitch 2" Ball

Maximum Tire Pressure psi 50

Options

Powertrain (Engine/Gen)

• Engine Heater (Kim Hotstart)

• Low Coolant Shutdown

• 60/40 Coolant

• Super Start Generator

• PMG Generator

• Fuel Transfer Pump

Controls

• Battery, 720 CCA Gel Cell

• Battery Disconnect, Lockable

• Battery Charger, 2 Amp

• Buck Transformer Kit

• 4 Position Phase Switch

• Analog Gauges

Cabinet/Fuel Tank

• 24 hr Fuel Tank

• 36 hr Fuel Tank

• Double Wall Standard Fuel Tank

• Containment

• Interior Cabinet Light

• Control Panel Light

• Auxiliary Strobe/Audible Indication

• Fire Extinguisher

Trailer

• 3" Ring

• 2 5/16" Ball

• Electric Brakes

• Surge Brakes

• Tandem Axle Trailer

• Spare Tire/Wheel Kit

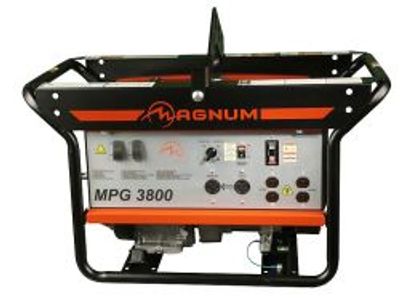

Whether you need a portable generator for work, home or recreation, you can trust in the power you know with Magnum Products' line of portable generators. These durable, easy-to-use generators can be used on work sites, for emergency power for appliances and lighting, or for outdoor recreation and events such as camping or parties.

Features

Durable

· Patent pending flared frame design

· Unique "shin shaving" design offers a comfortable carry

· Robust 1.25" tubular steel frame

· Frame provides full component protection

Easy to Use

· Heavy duty central lift eye for lifting-folds flat for storage

· Access and serviceability with Flip-Down control panel

· Well-spaced receptacles/switches for easy access

· Optional Wheel Kit allows mobility and easy maneuverability

Specifications:

Engine

Make   Honda

Model   GX240

Power - Net Prime* hp (kW)   7.1 (5.3)

Fuel Consumption - Net Prime gph   (Lph)   0.68 (2.57)

Displacement cubic   in (cubic cm)   15 (242)

Electric Start  No

Recoil Start  Yes

Generator

Make  Sawafuji

Model   3800 - US

Frequency Hz   60

Maximum Output Watts W  3800

Continuous Output Watts W 3400

Maximum Amps A   32

Electrical

Main Circuit Breaker  16A - 2 pole

Receptacle Voltage V  120, 240

120V - 20A GFI Duplex Outlets   - qty   2

120V/240V - 20A Twist Lock   Outlets - qty   1

120V/240V - 30A Twist Lock   Outlets - qty   1

Duplex Outlet Breakers - push   button - qty   N/A

Battery Voltage V   N/A

Capacities

Fuel Tank gal   (L)    6.6 (25)

Approximate Run Time hrs   9.7

Minimum Battery Capacity Ah   N/A

Weights lbs (kg)

Dry Weight   185 (84)

Operating Weight   226 (103)

Dry Weight, Wheel Kit Option   212 (96)

Operating Weight, Wheel Kit   Option   253 (115)

Wheel Kit, w/o generato   27 (12)

Dimensions - L x W x H

Generator, w/o Wheel Kit in   (mm) 36.8 x 21.4 x 21.5 (934.7 x 543.6 x 546.1)

Generator, w/ Wheel Kit in   (mm) 36.8 x 27.0 x 27.0 (934.7 x 686.0 x 686.0)

Maximum Battery Size in   (mm)  N/A

Product Notes

General Notes

*The power rating of the   engine indicated in this document is the net power output tested on a   production engine for the engine model and measured in accordance with SAE   J1349 at 3600 rpm. Mass production engines may vary from this value. Actual   power output for the engine installed in the final machine will vary   depending on numerous factors, including the operating speed of the engine in   application, environmental conditions, maintenance, and other variables.
