• Unmatched   sensitivity allows you to find what   you're looking for quickly, without the risk of passing over your target.
• Our   locators last 100% to 250% longer than others,
   making your investment a solid one.
• 85%   of the Surveyor market can’t be wrong.

Quality Is Our Hallmark
Schonstedt's underground magnetic locators have been setting the standards for reliability and dependability for over 30 years. They are designed to withstand the rigors of daily on-site usage and a wide range of environmental conditions. In fact, the Model GA-52Cx is so rugged and dependable it's backed by a 7-year warranty.

• Seven Year Warranty
• Enhanced target definition
• Unsurpassed detection range
• Piezoelectric speaker
• Clear, sharp, detection signal      pinpoints the target
• Five individual sensitivity      settings
• No response to aluminum, brass,      or copper
• Ease of operation reduces      search time
• With experience, user can      distinguish between small pieces of scrap iron and actual targets
• 40-hours operation      (intermittent usage) on two economical 9-volt batteries
• Modular construction
• High performance components
• Weights approximately 2 1/2 lbs
• Weather protected controls
• Rugged lightweight case
• Patented HeliFlux® sensors

Input Power: Two alkaline 9-volt batteries

Battery Life: 40 hours (intermittent usage)

Output: Approximately 40 Hz audio tone on speaker.
 Tone frequency increases or decreases with gradient-field intensity.

Weight: Approximately 2.5lb. (1.13 kg.)

Operating   Temp: -13° to 140°F (-25° to 60°C)

Overall   Length: 42.3 in. (107.4 cm)

Waterproof   Length: 34.5 in. (87.6 cm)

Nominal   Sensor Spacing: 20 in. (50.8 cm)

Construction: Modular, all solid state

Easy-To-Use

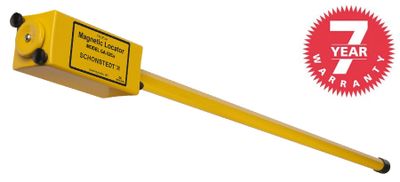

 The GA-52Cx Locator detects the magnetic field of iron and steel objects and   energized power lines. Both provide audio detection signals that peak in   frequency when the locator's tip is held directly over the target.

No. 1 Around the World
 in Performance and Reliability.

Only two Controls
Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover on both locators. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.

A Magnetic Locator that will single handedly change the way you work in the field.

• One hand operation
• Operates in both retracted and extended modes
• Fingertip control of volume and sensitivity
• Quick change battery compartment
• Battery indicator on both models

…and   best of all, it’s a SCHONSTEDT
Rugged, reliable and a 7-year warranty

Time to make a move to the new Schonstedt XT, the greatest innovation in magnetic locating since the celebrated "yellow stick". In its holster, the XT leaves both hands free on the way to the job site, then gives you the freedom to do your best work with one hand tied behind your back.
