MIKASA MTX60HD, MTX70HDR

Features & Benefits:

Multiquip's Mikasa 4-cycle rammers are the answer. Now with a redesigned fuel-tank that meets new EPA standards and features an integrated tachometer/hour meter.

MTX-Series rammers are renowned for performance and ease of operation.

The MTX-Series includes the features most preferred by contractors such as:

Cyclonic air cleaners that capture 98% of airborne dust particles.

Long-lasting laminated wood and steel shoe.

Low vibration handles for operator comfort Combination hour meter/tachometer.

Durable guards to protect the engine from damage Redesigned fuel tank to meet EPA standards for evaporative emissions.

SPECS:

MTX60HD

Unit Specifications

Engine Make/Model Honda GX100

Start Method    Recoil

Engine Power   2.8 HP

Engine RPM   4,100

Fuel Type   Gasoline

Blows Per Min. Up to 695*

Impact Force   3,064 lbf

Shoe Jump Height 3.1 in

Shoe Dimensions (LxW)   13.4 x 10.4 in

Travel Speed Per Min.   55.8 ft

Fuel Tank Capacity   2.7 qt

Dimensions & Weights Overall Length  28.1 in

Overall Width   13.8 in

Overall Height   40.4 in

Operating Weight   141 lb

MTX70HDR

Unit Specifications

Engine Make/Model   Honda GXR120

Start Method   Recoil

Engine Power   3.6 HP

Engine RPM   4100

Fuel Type   Gasoline

Blows Per Min.   Up to 690

Impact Force    3,350 lbf

Shoe Jump Height   3.1 in

Shoe Dimensions (LxW)   13.4 x 11.2 in

Travel Speed Per Min.   55.8 ft

Fuel Tank Capacity   2.7 qt

Dimensions & Weights Overall Length  31.0 in

Overall Width   13.8 in

Overall Height   40.4 in

Operating Weight   165 lb

Notice: Features and equipment specifications are subject to change without notice.

 MFG Part # BT 65
One Year Limited Warranty

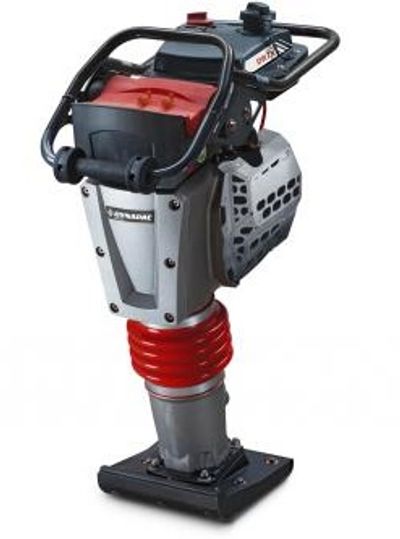

11 In. Tamper - Honda GXR120 Engine
Protective Cover, Yes
Ramming Force (kN) 17
Ramming Speed (SPM) 708
Maximum Area of Compaction (ft²/hr) 3616
Maximum Engine Output (hp) 3
Maximum Travel Speed (ft/min) 65
Overall Height (in) 40.5
Overall Length (in) 28.7
Overall Weight (lbs) 150
Overall Width (in) 13.8

  Low vibration handle
■ Dual stage fuel filter system
■ Air filter
■ Air pre-filter with self cleaning      housing
■ Auto oil level check before start
■ Engine protection covers
■ One knob to start or stop both engine & fuel
■ Infinitely variable frequency
■ Recoil starter
■ Loading aid rollers on handle
■ One point lift
■ Hour and rpm display
