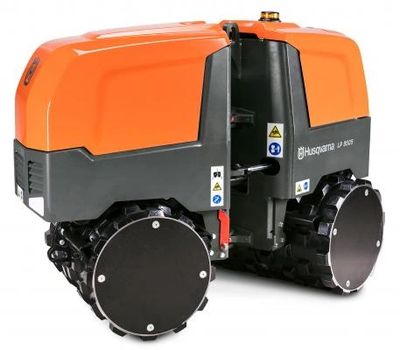

Husqvarna LP 9505 Trench Compactor

 Husqvarna LP 9505 articulated trench roller delivers a smooth,  compacted surface, which doesn't dig up soil when turning. Due to the  high operating weight and ultimate traction, it is suitable for all  kinds of soils (dry or wet) but especially suited for cohesive materials  like clay and silt. The fuel-efficient engine provides class-leading  power for a whole day of uninterrupted work and the radio remote control  offers great flexibility, better ergonomics and safer working  conditions. Servicing is quick and easy with all service points clearly  marked and easily accessed under the hoods.

Radio remote control technology
Allows the operator to choose the best position of where to stand,  providing for better ergonomics and safer working conditions. This lets  you focus on the final result.  The remote control comes with two batteries, one for use and the other  to charge in the on-board charger. This ensures you never run out of  power.

Engine
Motor/engine model-Diesel Engine KUBOTA 24 HP Output power (As rated by the engine/motor manufacture)-24.3 hp Power/fuel type-Diesel

Toro trench rollers provide optimum productivity on all soils, work hard, deliver maximum total applied force for greater impact in a single pass, and feature the Snap-Tek® system.

· Interchangeable 24" or 34" drums allow quick adaptation to different trench widths.

· Shorter, more compact design, coupled with counter-rotating drums, allows for a zero-turning radius.

· Superior maneuverability in confined areas.

· Battery is double isolated from vibration for extended life.

· Radio-frequency remote control option works up to 100 feet and is not affected by dirt, dust or beam interference.

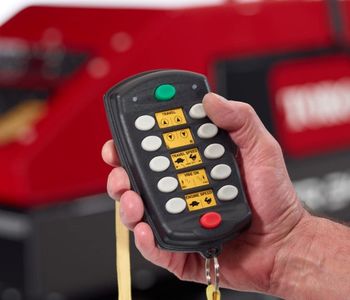

· Lightweight, hand-held, remote transmitter includes remote on/off, start/stop. Powered by standard AA batteries.

· Central lifting point for easy hoisting, tie-down points for easier transport, a heavy-duty roller cage for engine protection and seperate scraper bar front and rear drums are all standard features.

· Snap-Tek system provides snap-in conversion of a manual machine to remote operation.

· Snap-Tek electronic components and printed circuit board have snap-in connections for easy service and quick change capability.

· Snap-Tek system provides electronic readouts to aid in monitoring operating systems.

· Diagnostic test ports and LED indicators aid in trouble shooting.

·  features the highest impact force on the market at 15,709 lbs.

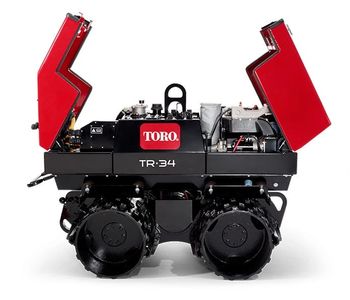

· Swing-away covers for access to engine, hoses, hydraulics, battery and all Snap-Tek components.

Dimensions
19.7" (50 cm) drum diameter, 34" (86 cm) drum width

Force
15,706 lbs (7,124 kg) of centrifugal force

Engine
Hatz 2G40

Maximum Productivity
10,798 square-feet/hour (1,003 sqaure-meters/hour)

Speeds
Low Vibration: Speed up to 68 ft/min, High Vibration: Speed up to 136 ft/min

Vibration Frequency
2,000 vpm

Weight
3,100 lbs (1,406 kg)

WIDTH 24.0" AND 33.5"

ENGINE 19.4 HP (Kubota)

WEIGHTS 3583 - 3622

USES:

Base preparation

Compaction and backfilling around footings and foundations

Backfilling of trenches

Compaction of difficult soils where high maneuverability is required

Country-specific deviations of technical data possible

Articulated steering

Dual function cabled / radio remote control box

Standard dual (2) working widths of 24 and 33.5 inches

1 inch padfoot height

High centrifugal force and amplitude

2 selectable amplitudes

Double exciter system with directed vibration

Intelligent Vibration Control (IVC)

2 scrapers per drum

Water cooled Kubota engine with ECOMODE

2 travel speed ranges

Spring-Applied, Hydraulically

Released (SAHR) parking brake

Balanced, hinged center lift point

Swing out/up covers

Lockable hoods

Easy service concept

Diagnostic module with failure codes

Diesel filter with water separator

Infrared Remote, 24/33 in. wide drums, 20HP Yanmar engine
The MQ Rammax RX1575 is an all new articulating trench roller  designed to meet contractor expectations for performance and reliability. Experienced operators will appreciate the new design features that simplify operation and reduce downtime.

    Flexible drum options include easy to remove drum rings that adjust from 33" to 24" working widths
   Optimum compaction performance and increased stability on uneven surfaces with the oscillating articulation joint
   Gain traction on tough material with steel padded drums and four sets of scrapers
   Increased machine control with a wireless transmitter covering a  wider operational area & two ideally positioned receiver eyes
   Easily keep the remote control battery charged with a solar panel or cable connector
   Be safe on the job with our total safety concept that enables close  operator proximity shut-down and infrared remote control requiring  direct visual contact with receiver eyes for operation
   Powerful Yanmar diesel engine liquid cooled, 3 cylinder engine is  EPA tier 4 compliant. Delivers exceptional performance even in high  altitude applications
   Save money on fuel with an efficient running Yanmar diesel engine consuming up to 50% less versus leading competitors
   No greasing required with a maintenance free articulation joint
   Easy access to all maintenance points with fold-up front and rear covers
   Peace of mind with industry leading 5-3-2 warranty
